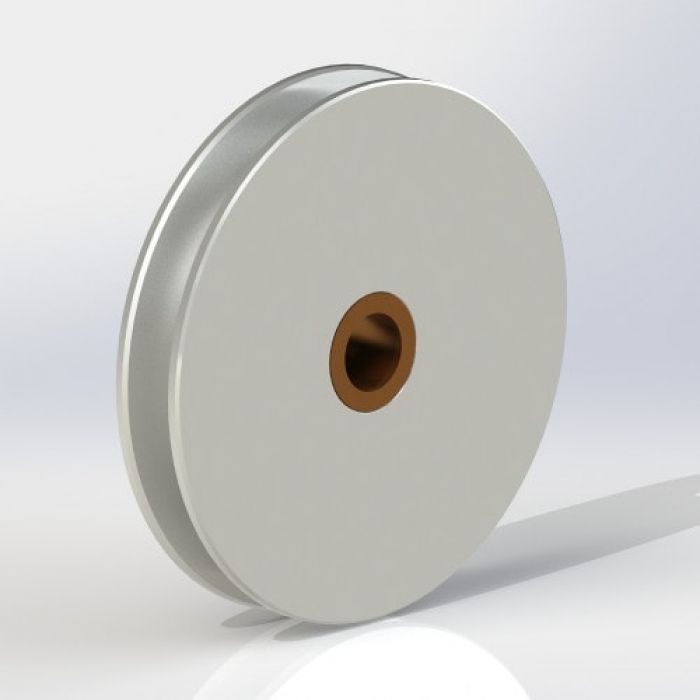

OP Series Pulley, Plated Steel, Bronze Bushing
| Item #: | 101179 |
|---|---|
| SKU: | 101179 |
| Bore Diameter (in.): | 0.75 |
| Outer Groove Diameter (in.): | 2.5 |
| Inner Groove Radius (in.): | 0.215 |
| Groove Width (in.): | 0.530 |
| Outside Diameter (in.): | 3 |
| Thickness (in.): | 0.625 |
| Load Rating: | NA |
| Bearing Thickness (in.): | 0.625 |
| Bore Condition: | Bronze Bushing |
| Part: | OP0250MP #751063 |
| Mating Cable Diameter (maximum, in.): | 0.313 |
| Mating Cable Diameter (minimum, in.): | 0 |
| Type: | Standard |
| Material: | Plated Steel |
Description:
Zinc plated steel pulleys are an economical line of precision pulleys used with cables up to 3/8”. OP Series Pulleys are available with precision steel ball-bearings, roller bearings or bronze bushings.
