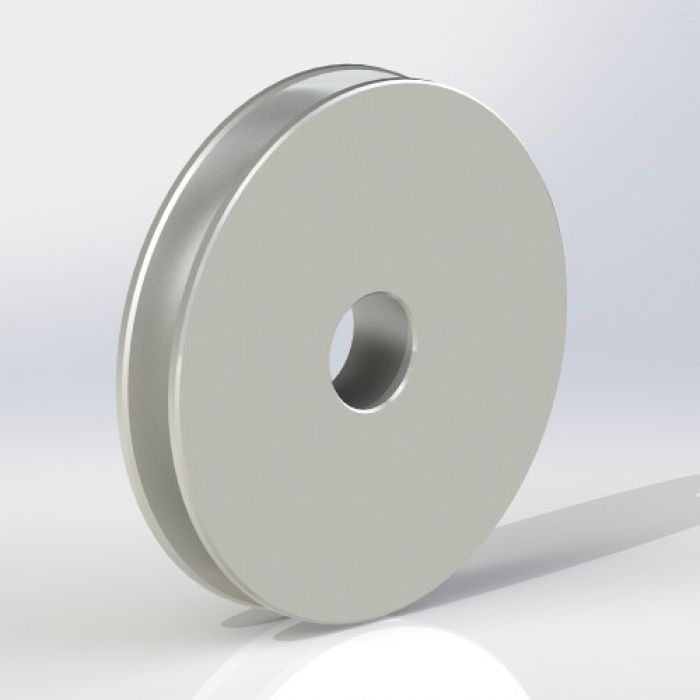

OP Series Pulley, Plated Steel, Plain Bore
| Item #: | 101138 |
|---|---|
| SKU: | 101138 |
| Bore Diameter (in.): | 0.625 |
| Outer Groove Diameter (in.): | 1.5 |
| Inner Groove Radius (in.): | 0.125 |
| Groove Width (in.): | 0.345 |
| Outside Diameter (in.): | 2 |
| Thickness (in.): | 0.44 |
| Load Rating: | NA |
| Bearing Thickness (in.): | NA |
| Bore Condition: | Plain Bore |
| Part: | OP0150 0.625 ID Bore |
| Mating Cable Diameter (maximum, in.): | 0.188 |
| Mating Cable Diameter (minimum, in.): | 0 |
| Type: | Standard |
| Material: | Plated Steel |
Description:
Zinc plated steel pulleys are an economical line of precision pulleys used with cables up to 3/8”. OP Series Pulleys are available with precision steel ball-bearings, roller bearings or bronze bushings.
