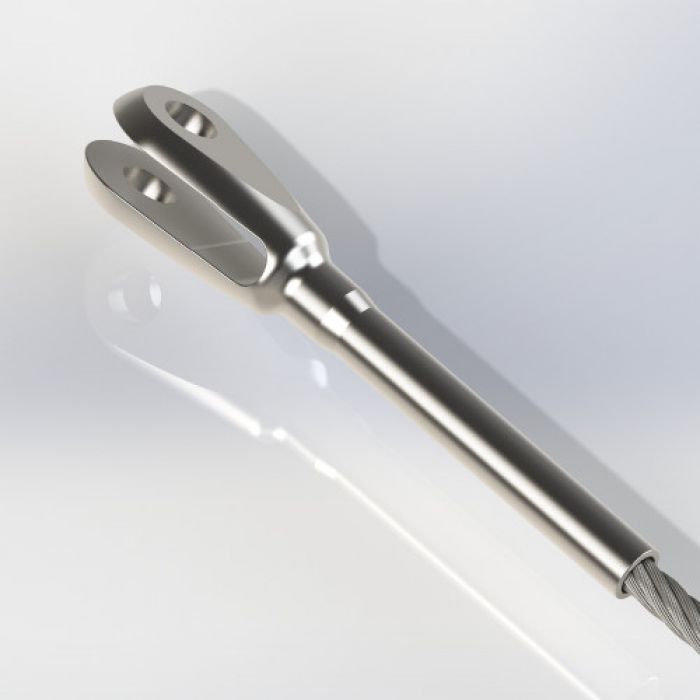

Stainless Steel Fork, Mil Spec
| Item #: | 101084 |
|---|---|
| SKU: | 101084 |
| Fork Height, F (in.): | 0.83 |
| Fork Gap, G (in.): | 0.38 |
| Hole Location, H (in.): | 1.525 |
| Fork Width, U (in.): | 1.5 |
| Part: | MS20667 #12 Fork |
| Cable Grade: | Mil Spec, MIL-DTL-83420 |
| Fitting: | Fork |
| Fitting Length, L (in.): | 5.74 |
| Hole Size: | 0.5 |
| Mating Cable Maximum Diameter (in.): | 0.375 |
| Mating Cable Minimum Diameter (in.): | 0.375 |
| Diameter, A (in.): | 0.625 |
Description:
The MS20667 Fork Fitting is manufactured from stainless steel in accordance with the requirements of MIL-DTL-781 and is certified to those standards
