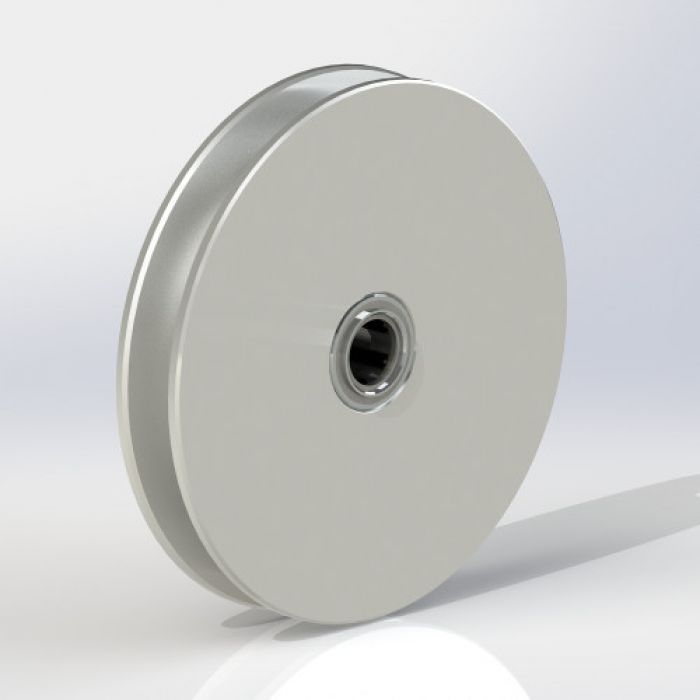

OP Series Pulley, Plated Steel, Needle Bearing Sealed
| Item #: | 101198 |
|---|---|
| SKU: | 101198 |
| Bore Diameter (in.): | 0.5 |
| Outer Groove Diameter (in.): | 2.812 |
| Inner Groove Radius (in.): | 0.24 |
| Groove Width (in.): | 0.530 |
| Outside Diameter (in.): | 3.5 |
| Thickness (in.): | 0.625 |
| Load Rating: | NA |
| Bearing Thickness (in.): | 0.625 |
| Bore Condition: | Needle Bearing Sealed |
| Part: | OP0281RS #506963 |
| Mating Cable Diameter (maximum, in.): | 0.375 |
| Mating Cable Diameter (minimum, in.): | 0 |
| Type: | Standard |
| Material: | Plated Steel |
Description:
Zinc plated steel pulleys are an economical line of precision pulleys used with cables up to 3/8”. OP Series Pulleys are available with precision steel ball-bearings, roller bearings or bronze bushings.
